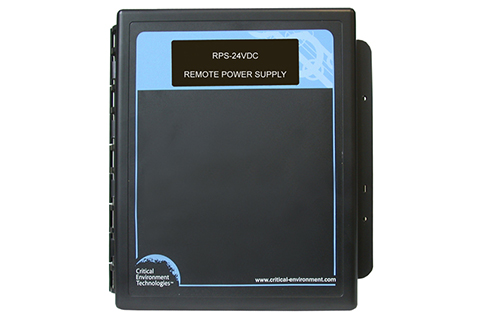

RPS-24VDC Remote Power Supply

Category : Remotes & Peripherals

Kondisi : NEW

View : 129

ORDER NOW !!
Hotline 1 : 0822-5102-2483
Hotline 2 : 0857-7556-1612 (Marketing Team)
Hotline 3 : 0812-8847-8408

The RPS-24VDC is a remote power supply for large fixed system applications and/or very long wire runs. It converts 90 - 240 VAC power to 24 VDC power, providing a renewed amount of power to compensate for voltage drops. Projects requiring a large number of gas detectors or consist of very long wire runs require a remote power supply to boost the voltage to the last transmitter on the network run and to reinforce the voltage provided by the Controller to the first line of transmitters. The RPS-24VDC comes in a standard water / dust tight, corrosion resistant ABS / polycarbonate enclosure with a hinged, secured door.

Key Features

  • Supplies power to a large gas detection system
  • Boosts power on long wire runs that present a voltage loss condition
  • Standard water / dust tight, corrosion resistant enclosure

Specifications

Mechanical

Enclosure

ABS / Polycarbonate, corrosion resistant

Copper coated interior to reduce RF interference

Weight

1.4 kg / 3 lbs

Size

254 x 218 x 109 mm / 10.0 x 8.6 x 4.3 inches

Electrical

Power Requirement

Line Voltage: 90 – 240 VAC, 50 -60 Hz, 75 W

Output

24 VDC, 75W

Wiring

4-conductor shielded minimum 18 AWG stranded within conduit

Fuses

Thermal, resetting

Environmental

Operating Temperature

-20°C to 40°C (-4°F to 104°F)

Operating Humidity

20 - 90% RH non-condensing

Certifications

Conforms to:

CSA-C22.2 No. 205-12, UL508 (Edition 17):2007

EMC Directive 2004/108/EC, EN 50270:2006, Type 1, EN61010

FCC. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
