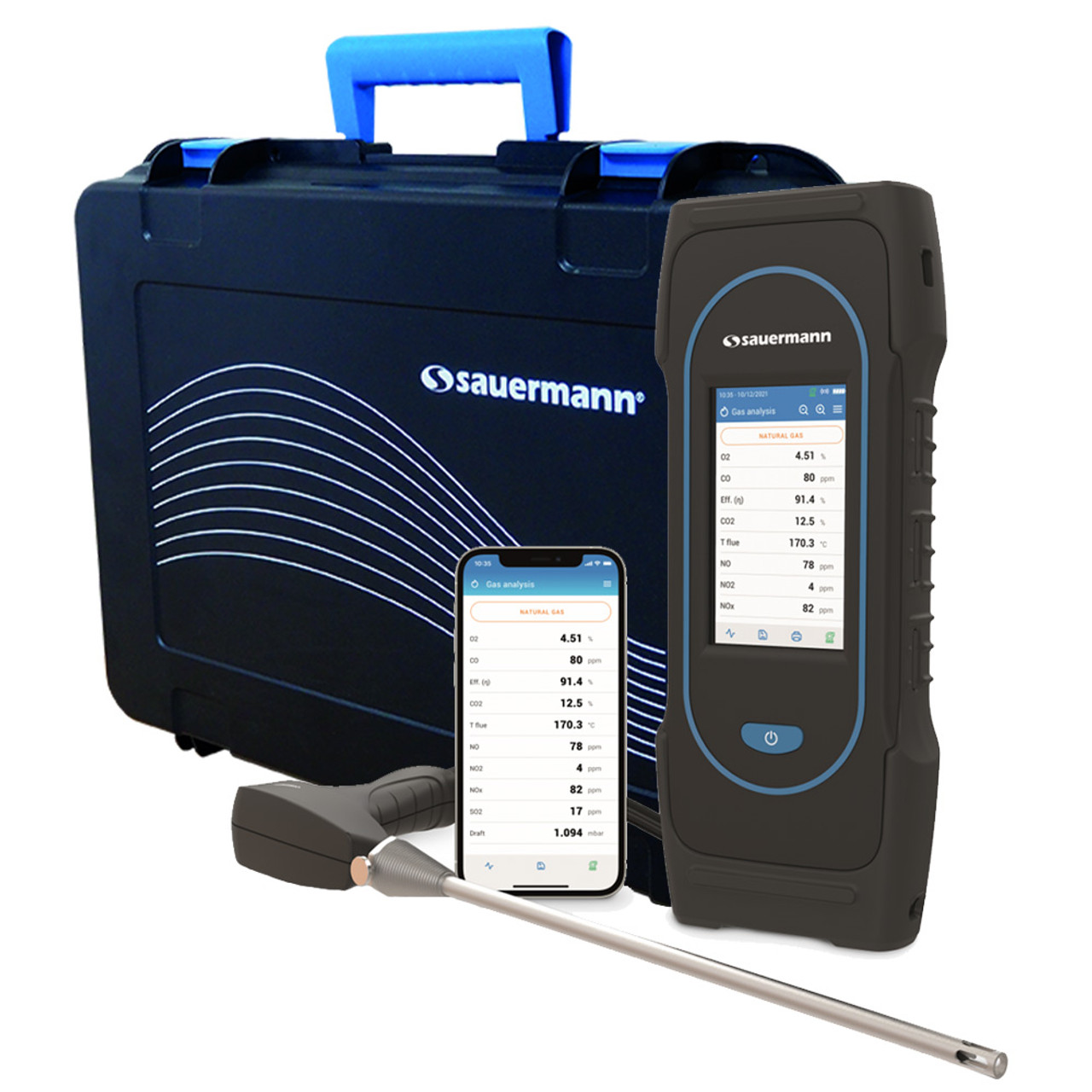

SiCA 230

Sauerman

Category : Flue Gas Analyzer

Kondisi : NEW

View : 129

ORDER NOW !!
Hotline 1 : 0812-8927-0182
Hotline 2 : 081284326432 (Marketing Team)
Whatsapp : 0812-9407-7633

With double the number of cells and expanded measurement capabilities, the Si-CA 230 is suited to the most powerful industrial machines. And with support for more gases and a high CO tolerance threshold, its versatility makes it the ideal choice across residential, commercial and industrial applications.
  • Up to six gas sensors
  • Total NOx & Low NOx Capable
  • Field Replaceable Pre-Calibrated Sensors
  • Large Color Touch Screen
  • iOS and Android Mobile Apps for Real-Time Display & Control
  • CO Dilution auto-range with measurements to 50,000 ppm

MEASURING RANGES

  • O2

    0.00 % ... 25.00 %

  • CO (H2 comp.)

    0.00 ppm ... 10000.00 ppm

  • CO (with dilution)

    100.00 ppm ... 50000.00 ppm

  • CO2

    0.00 % ... 99.00 %

  • NO

    0.00 ppm ... 5000.00 ppm

  • Low NO

    0.00 ppm ... 300.00 ppm

  • NO2

    0.00 ppm ... 1000.00 ppm

  • Low NO2

    0.00 ppm ... 100.00 ppm

  • NOx

    0.00 ppm ... 7500.00 ppm

  • Low NOx

    0.00 ppm ... 450.00 ppm

  • SO2

    0.00 ppm ... 5000.00 ppm

  • Low SO2

    0.00 ppm ... 100.00 ppm

  • CxHy (HC)

    0.00 % ... 5.00 %

  • H2S

    0.00 ppm ... 500.00 ppm

  • Flue temperature

    -20.00 °C ... 1250.00 °C

  • Air temperature

    -20.00 °C ... 120.00 °C

  • Differential temperature

    0.00 °C ... 1250.00 °C

  • Pressure/Draft

    -200.00 mbar ... 200.00 mbar

  • High accuracy draft

    500.00 Pa ... 500.00 Pa

  • Excess air

    0.00 % ... 999.00 %

  • Efficiency

    0.00 % ... 100.00 %

  • Efficiency (condensation)

    0.00 % ... 125.00 %

  • Stack Gas Velocity

    0.00 m/s ... 99.00 m/s

shadow

TECHNICAL DETAILS

  • Parameters

    Air quality

    Gas analysis

    CO

    CO2

    H2S

    NO

    NO2

    O2

    SO2

  • Displays

    Color graphical display

  • IP Protection

    IP 42

  • Battery life

    8 hours

  • Standards

    2015/863 EU (RoHS 3)

    NF EN 50379-1

    NF EN 50379-2

    2014/53/EU RED

  • Wireless connection

    1

  • Power supply

    Rechargeable battery, Li-Ion 5100 mA/h 3.6 V

  • Usb

    Yes

  • Sensors

    CO

    CO2

    CxHy

    H2S

    NOx

    NO

    NO2

    O2

    SO2

  • Auto zero

    Yes

  • Printer

    Remote

  • Sensor protection

    Sensor protection by pump stopping

  • Mobile application

INSTRUMENT DIMENSIONS

  • Length

    280 mm

  • Width

    112 mm

  • Height

    55 mm

  • Weight

    825 g

shadow



OPERATING TEMPERATURE

  • Min

    -5.00 °C

  • Max

    45.00 °C

Yes
