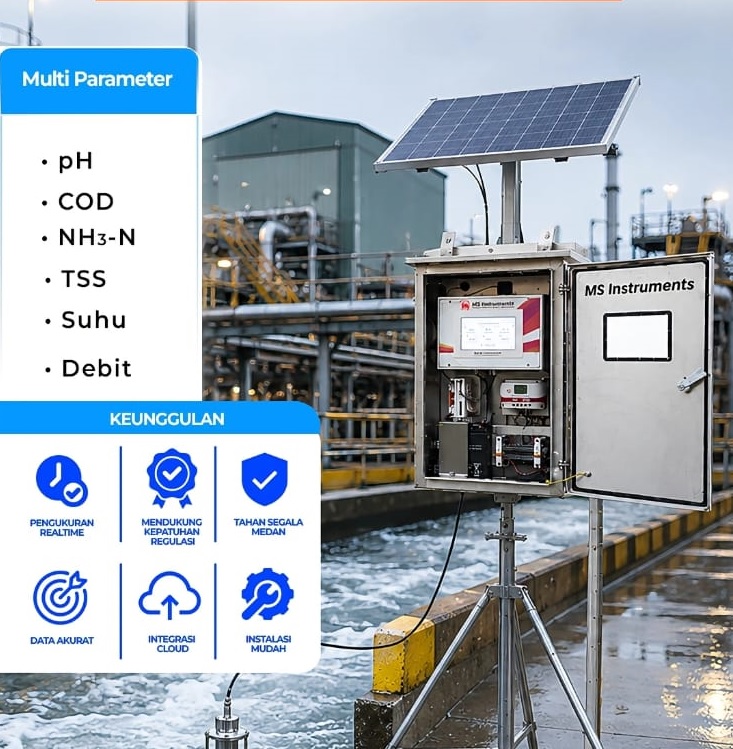

Spesifikasi Teknis WQMS

Casing

- Casing Material: Stainless Stell

- Casing Dimension: 60cm x 40cm x 20cm

- Casing Plate Thicknes: 1.5mm

- Protection Grade: IP55

Monitoring

- Realtime monitoring (Display LCD, Web Server)

- Data Measurement: pH (pH); NH3-N (mg/Liter); COD (mg/Liter); TSS (mg/Liter); Debit (m3/jam); Temperature (°C)

- HMI LCD Display Colored TFT Industrial with Touchscreen

- Calibration setting in LCD

Connectivity

- Edge IoT Gateway

- GSM (4G)

- Ethernet (WAN/LAN)

- GPS

Power

- Power Supply: AC 220, 50Hz

- Solar Panel: 100Watt Peak. With PWM Solar Charge Controller

- PV Battery Storage 12V 18AH

Sensor

pH

Type: RK500-12

Brand: Rika

- Electrochemical Principle

- Measuring Range 0 - 14

- Accuracy 0.01

- Resolution 0.01

COD

Type: RK500-25

Brand: Rika

- Optical Principle

- Measuring Range 0 – 1000 mg/Liter

- Accuracy ±5%FS

- Resolution 0.02mg/L

NH3-N

Type: RK500-15

Brand: Rika

- Electrochemical Principle

- Measuring Range 0 – 100 mg/Liter

- Accuracy ±5%FS

- Resolution 0.01mg/L

TSS

Type: RK500-20

Brand: Rika

- Optical Principle

- Measuring Range 0 – 10.000 mg/Liter

- Accuracy ±3%FS

- Resolution 1mg/L

DEBIT

Type: RKL-07

Brand: Rika

- Doppler Effect Principle

- Measuring Range 0.03 m/s - 20 m/s

- Accuracy ±1%FS

- Resolution 0.01m/s

Temperature

Type: RK500-11

Brand: Rika

- Resistance Temperature Detector Principle

- Measuring Range -40-+80°C

- Accuracy ±0.5%FS
